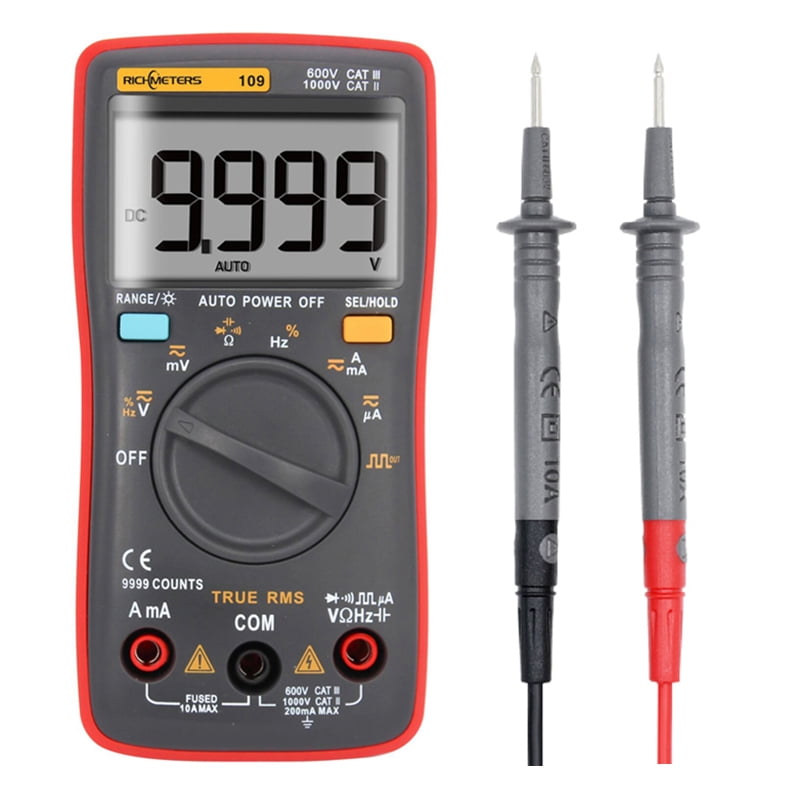

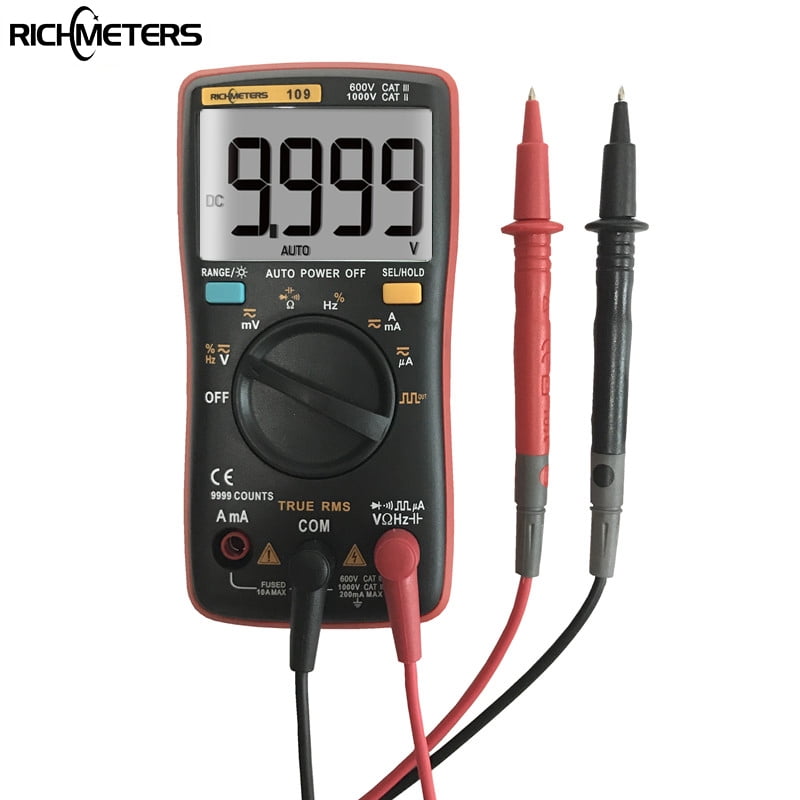

RM109 Palm-size True-RMS Digital Multimeter 9999 counts Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual
Product details
| Management number | 237855991 | Release Date | 2026/07/11 | List Price | US$21.20 | Model Number | 237855991 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Brand Name: RICHMETERS Model Number: RM109 Backlight Times:120 Seconds Operating Temperature: 0 - 40 ℃ Operating Humidity: ≤75%RH Storage Condition: -20~60℃ Storage Humidity: ≤80%RH DIY Supplies: Electrical Operating Mode: Auto/Manual Ranging Measuring Inductance Range: no
- Measuring Temperature Range: -20~1000 C/-4F-1832F
- Measuring Capacitance Range: 9.99nF/99.99nF/999.9nF/9.99uF/99.99uF/999.9uF/9.999MF
- Measuring Voltage Range: 999.9mV/9.999V/99.99V/999.9V
- Measuring Current Range:60mA/600mA/10A
- Measuring Resistance Range: 99.99/999.9/9.999k/99.99k/999.9K/999.9M Ohm
- Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
- Square Wave Output: 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/ 900Hz/1000Hz/2000Hz/3000Hz/4000Hz/5000Hz
- DC/AC Voltage(mV): 9.999mV/99.99mV
- DC/AC Voltage(V): 999.9mV/9.999V/99.99V/750ACV(999.9DCV)
- DC/AC Current (mA&A): 999.9mA/9.999A
- DC/AC Current (uA): 99.99μA/999.9μA
- Display Type: Digital Display
- Diode Test: Yes
- Continuity: Yes
- Duty Cycle: 1%-99%
- Sample Rate: 3 times per second

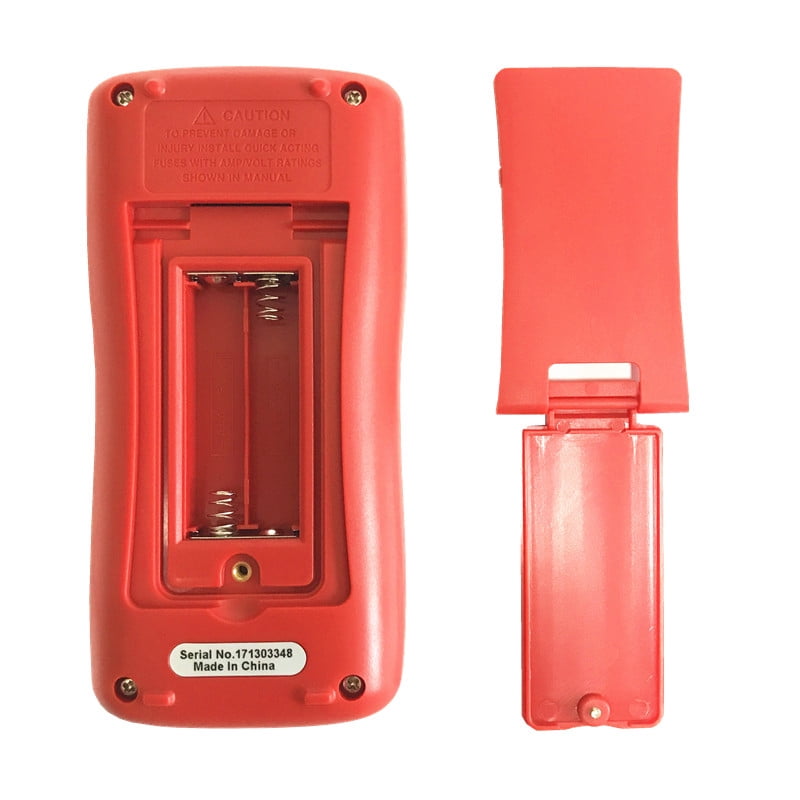

- Power: 2 * 1.5V AAA batteries(Not Included)
| Multimeter type | Digital |
|---|---|
| Volts | 999.9 V |
| Brand | Richmeters |
| Display | Digital |
| Power type | Battery |
| Model | 109 |

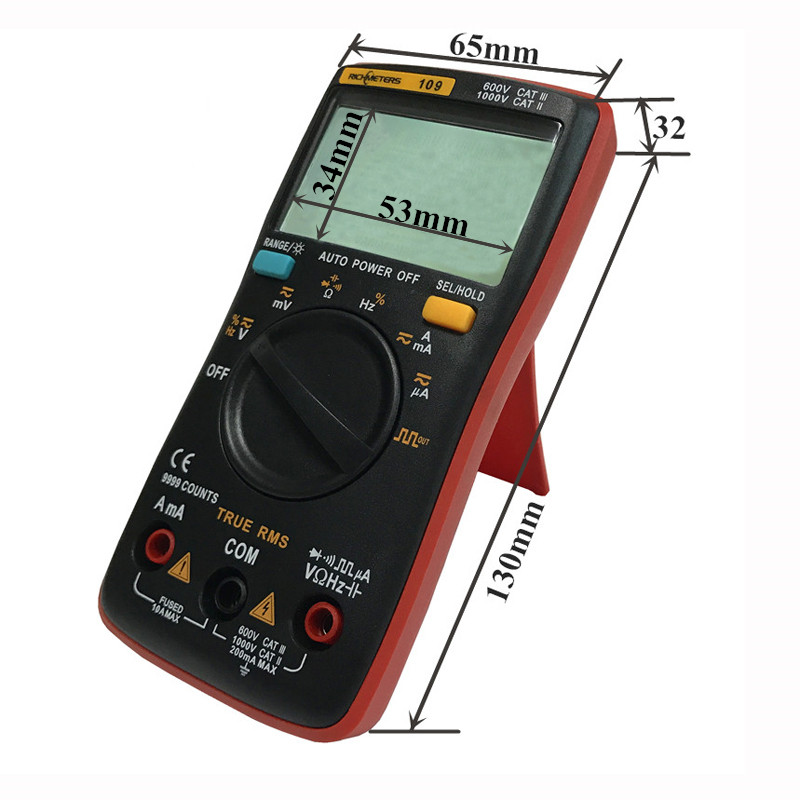

| Dimensions | 215.00 x 190.00 x 55.00 mm |
| Weight | 0.53 lb |
| Rec. use | DIY |
| Has written warranty | No |
| Material | NCV |
